PLC (Planar Lightwave Circuit) splitter is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.SZOPT provides a various types of 1×N and 2×N PLC splitters, including 1×2/4/8/16/32/64,2×2/4/8/16/32/64 etc.PLC splitters. All of our products are all with superior optical performance, high stability and high reliability to meet various application requirement.
Payment:
T/T,L/C,WU,etc.Product origin:
CNColor:
White or custom.Shipping port:
Shenzhen/HongKongLead Time:

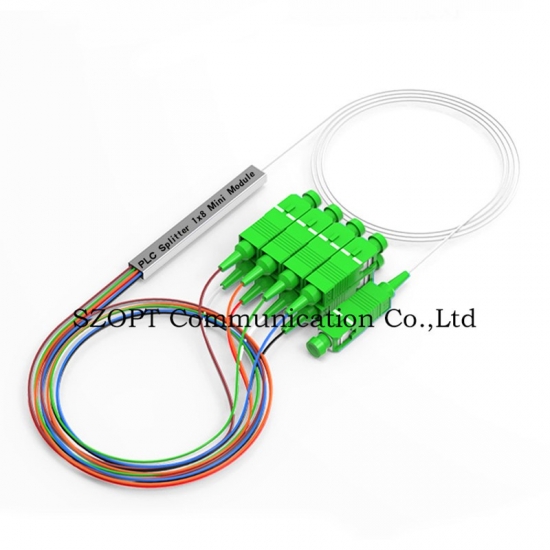

15 daysPLC Splitter 1X8 Mini Module SC/LC/FC/ST UPC APC

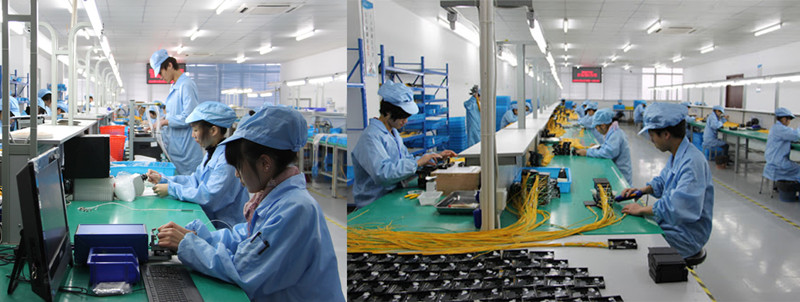

we have a complete strict quality control system,from raw material,production process,inspection,packing,etc. to ensure the top quality of the finished products reach 100% qualification before exporting . We never let any defect out of factory.

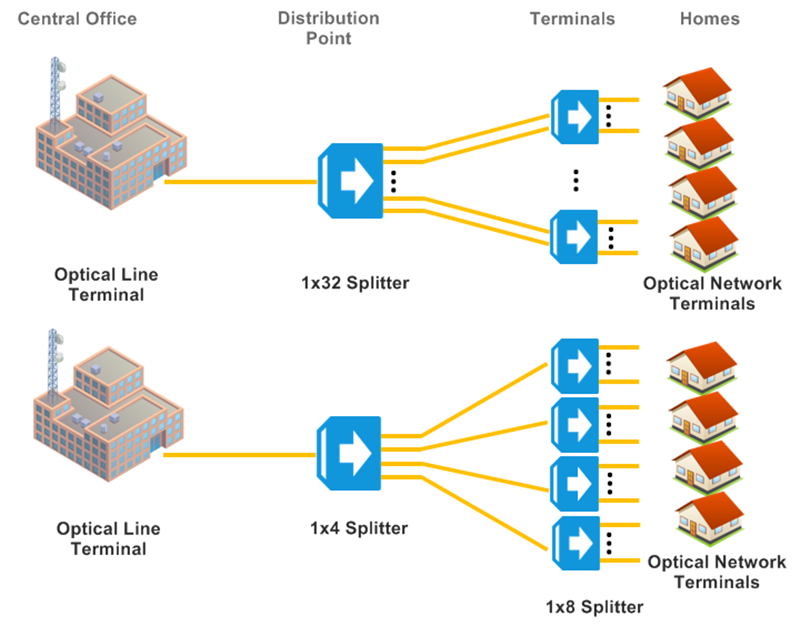

Application:
FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applications in fiber optic systems
Feature:
Package:
Each one is put in a glister box,then put into a carton box.
Specification:
|
operation wavelength |
1260 - 1650 |
|||||||
|
1*N PLC Splitter |
1*2 |
1*4 |
1*8 |
1*16 |
1*32 |
1*64 |
1*128 |
|
|
insertion loss (dB) |
MAX(p/s) |
3.8 /4.0 |
7.0 /7.4 |
10.5 /10.7 |
13.6 /13.9 |
16.6 /16.9 |
21 /21.5 |
24 /24.5 |
|
uniformity (dB) |
MAX(p/s) |
0.6 /0.6 |
0.6 /0.7 |
0.8 /1.0 |
0.9 /1.2 |
1.2 /*1.4 |
1.7 /1.9 |
2.2 /2.5 |
|
return loss (dB) |
MIN |
55 |
||||||
|
pdl (dB) |
MAX(p/s) |
0.15 /0.25 |
0.15 /0.25 |
0.2 /0.25 |
0.2 /0.3 |
0.25 /0.3 |
0.25 /0.35 |
0.4 /0.45 |
|
2*N PLC Splitter |
2*2 |
2*4 |
2*8 |
2*16 |
2*32 |
2*64 |
2*128 |
|
|
insertion loss (dB) |
MAX(p/s) |
4.0 /4.3 |
7.4 /7.6 |
10.7 /11.0 |
14 /14.5 |
17.5 /18 |
21.4 /21.9 |
*** |
|
uniformity (dB) |
MAX(p/s) |
0.9 /1.1 |
1.0 /1.2 |
1.0 /1.2 |
1.2 /1.5 |
1.5 /1.8 |
2.0 /2.3 |
*** |
|
return loss (dB) |
MIN |
55 |
||||||
|
pdl (dB) |
MAX(p/s) |
0.25 /0.3 |
0.25 /0.3 |
0.25 /0.3 |
0.3 /0.35 |
0.3 /0.35 |
0.35 /0.4 |
*** |
|
temperature stability(dB) |
MAX |
0.5(0.3) |
||||||
|
operation temperature ℃ |
-40 ~ 85 |
|||||||
|
storage temperature ℃ |
-40 ~ 85 |
|||||||
