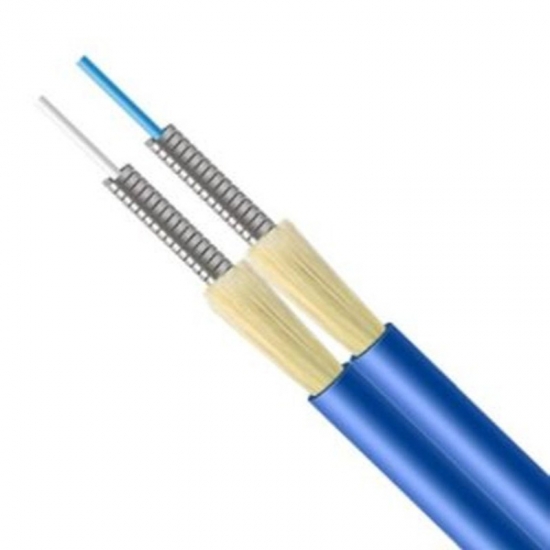

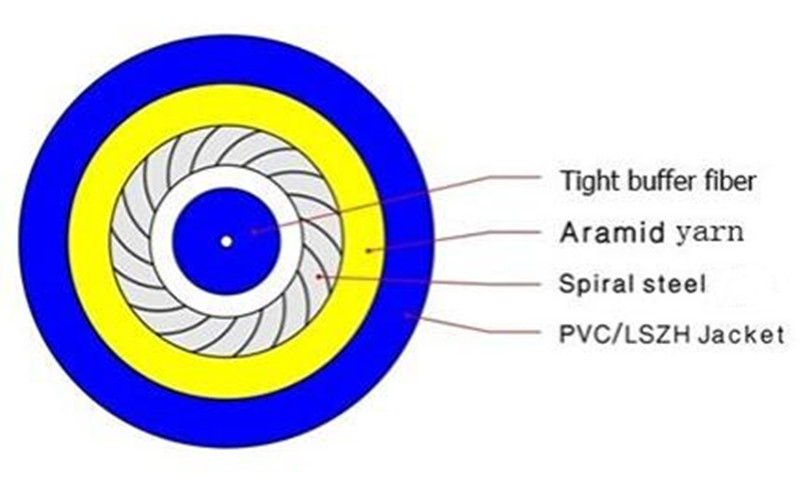

Indoor Optical Armored Cable Singlemode Multimode

250um loose-tube and 900um tight-buffered fiber cables start with the same 250um bare fibers that feature the same size fiber core (i.e., 62.5/50um for multimode and 9um for singlemode), 125um cladding and soft 250um coating.

Duct type Ftth drop cable is also called duct ftth drop cable,the outer jacket is black PE,the dimension of the cable is:7.0mm,the option for strength member is:Steel/FRP/KFRP,the option for the fiber is:G652D,G657a1,G657a2 or custom.

Air-blown optical cable is a kind of fiber optic cable that uses air delivery during installation.It is to use high-pressure to suspend the optical cable in the microtube. While the air blown fiber optic cable itself is being propelled by the driver, the high-speed flowing gas carries the optical cable and advances together. It is very convenient.

ADSS is the short form of All-dielectric Self-supporting,ADSS cable is a type of fiber optic cable that is strong enough to support itself between structures without containing conductive metal elements. The fibers can be arranged in ADSS cables with a maximum of 144 fibers. ADSS fiber optic cable is designed for outside plant aerial and duct applications in local and campus network loop architectures from pole-to-building to town-to-town installations. The cabling system that includes cables, suspension, dead-end, and termination enclosures offers a comprehensive transmission circuit infrastructure with high-reliability performance.

The 250μm fibers are positioned in a high modulus plastic loose tube.The tubes are filled with a water-resistant filling compound,wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The outer sheath can be PE or custom.

Our GYTY53/GYTS53 cable, available for singlemode & multimode,the fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound.Tubes and fillers are stranded around the strength member into a circular cable core. Then the cable is completed with a PE sheath. Which is filled with the filling compound to protect it. After PSP is applied over the inner sheath, the cable is completed with a PE outer sheath.

SZOPT‘s GYXTW is a type of outdoor cable with fibers positioned in a loose tube made of a high modulus plastic,the tubes are filled with a water-resistant filling compound aslso wrapped with a layer of corrugated steel tape.Between the corrugated steel tape and the loose tube water-blocking materials is applied to keep the cable compact and watertight.

The Ftth self-supporting drop cable is usually used for outdoor with the outer jacket of black PVC/LSZH,the dimension of the cable is:5.0x2.0mm,the option for strength member is:Steel Wire,FRP or KFRP,the option for the fiber is:G652D,G657a1,G657a2 or custom.

Fiber optic distribution cable is a type of high density optical fiber cable that is primarily used in LANs and data centers, or any indoor environment,available in all fiber types, the durable jacket offers excellent strength and protection during installations and restorations. The 900μm color coded buffers allow for easy identification and termination.The jacket is available for OFNR,OFNP,LSZH,etc.

GYTS/GYTA cable is a type of the outdoor cable used for duct and direct buried applications with corrugated steel tape or aluminum tape. SZOPT supplies both single mode and multimode GYTS cables.PBT loose tube has 2-12 fibers, The central Strength member is: steel wire. It has a Filling Compound; Longitudinal corrugated steel tape laminated with polyethylene on both sides. Consequently.

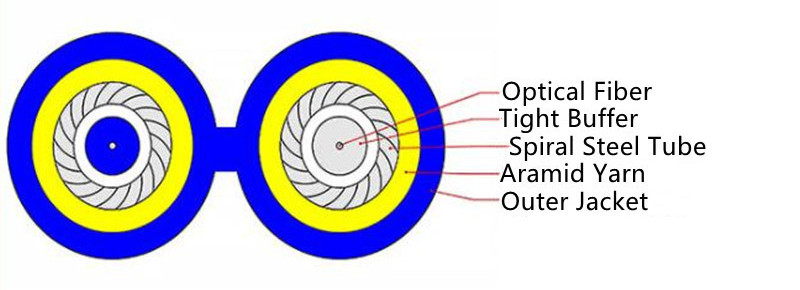

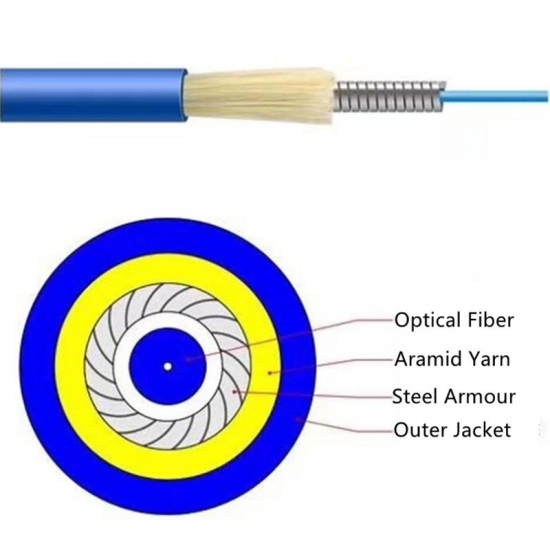

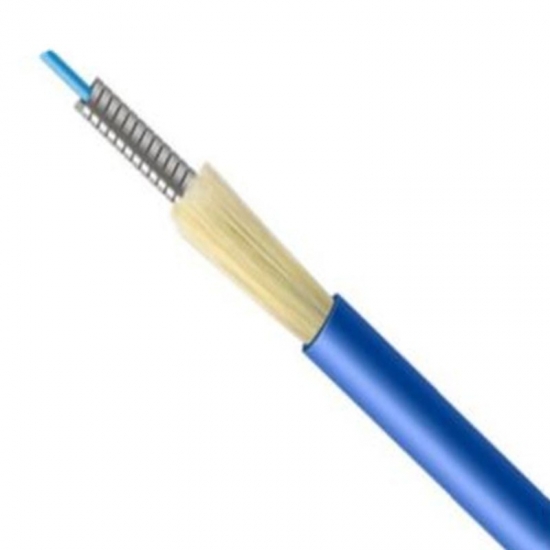

Simplex fiber optic cable consists of a single fiber,tight-buffered (coated with a 900 micron buffer over the primary buffer coating) with Kevlar (aramid yarn) strength members and jacketed for indoor use.The outer jacket can be with Riser, Plenum rated constructions and LSZH jacket.Duplex cable has two types,one is with two individual fibers in “8”digit,the other has two fibers in a round cable.

It's also called butterfly drop cable or bow-type ftth drop cable,the outer jacket is black or white in PVC or LSZH for indoor use,the dimension of the cable is:3.0x2.0mm(1-2core) or 3.5x2.0mm(4core),the option for strength member is:Steel,FRP or KFRP,the option for the fiber is:G652D,G657a1,G657a2 or custom.
