Optical Ground Wire OPGW Cable

OPGW is designed to replace traditional static,shield,ground cables in overhead transmission lines,it’s of additional telecommunications purposes because of containing optical fibers inside.



  • Payment:

    T/T,L/C,WU,custom
  • Product origin:

    CN
  • Color:

    Steel
  • Shipping port:

    Shenzhen/HK
  • Lead Time:

    3-10 days
  • Product Details

Optical Ground Wire OPGW Cable


Optical Ground Wire OPGW Cable is able to withstand the mechanical stresses applied to aerial cables by environmental factors such as wind,rain and ice etc.It also handles electrical defects in the transmission line by providing a path to earth without damaging the sensitive optical fibers inside the cable.Any further information,please reach SZOPT for details.

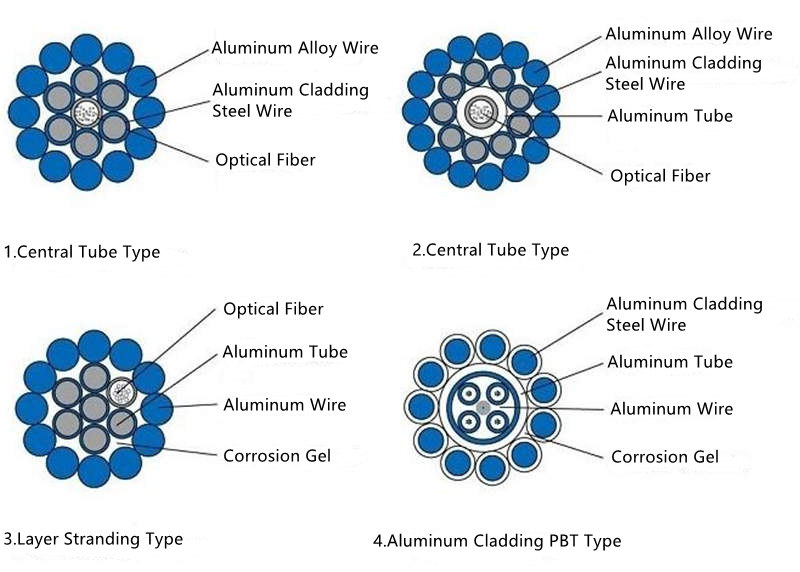

Different types of OPGW Cable

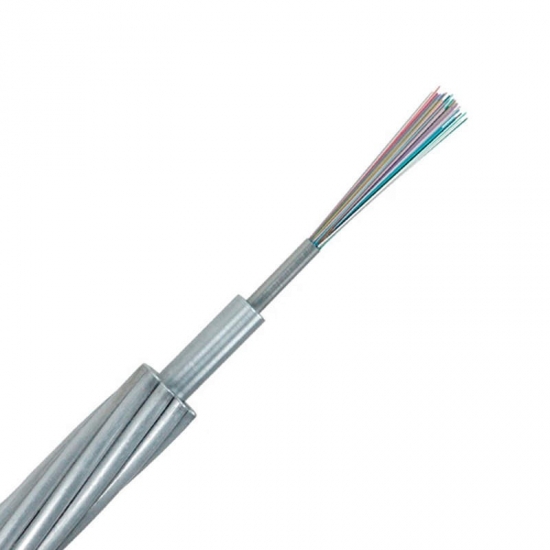

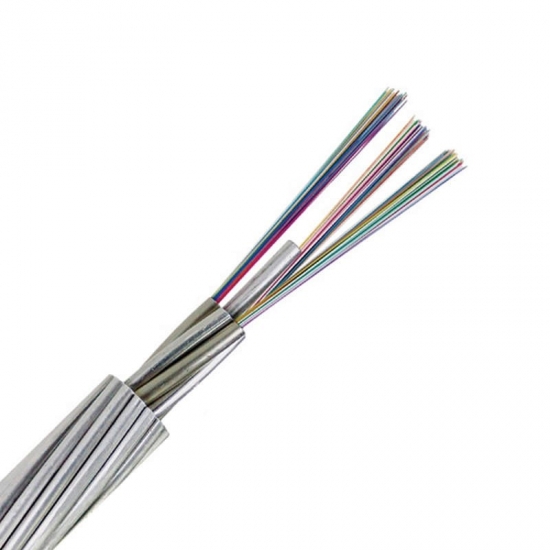

OPGW Wire

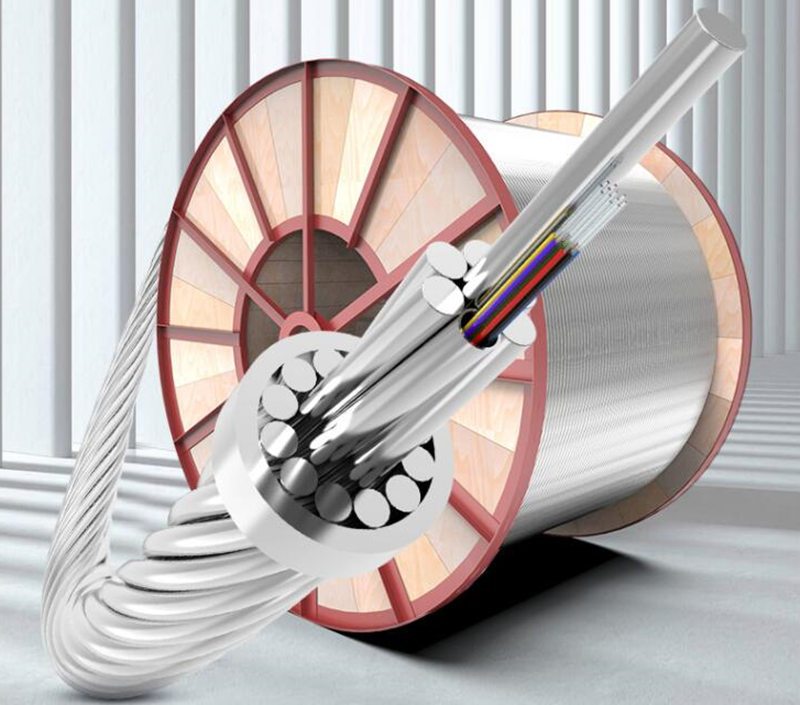

OPGW Cable Package


Appliance of OPGW Cable


Application:

Reconstruction of old power lines;

High Voltage>110kV

Coastal chemical industrial areas with heavy chemical pollution.



Feature:

Good mechanical and environmental characteristics;

Good optical performance;

Dual function of grounding wire&communication optic cable;

Eliminating the cost of repeated erection & maintenance.



Package:

1km/2km/3km per drum or custom.


Mechanical Characteristics:

Supporting Cross Section

100.39mm2

RTS

70kN

E-Modulus

110kN/mm2

Thermal Elongation Coefficient

15.1x10-6/

MAT(40%RTS)

375N/mm2

EDS(16%-25%RTS)

150~235N/mm2

Strain Margin Stress(60%RTS)

563N/mm2

DC Resistance(at 20)

0.6Ω/km

Short Circuit Capacity

63 KA2S

Installation Tensile Strength(20%RTS)

19 kN

Temperature Range

-10℃+50℃(Installation)

-40℃+80℃(Operation)



Optical Characteristics:



G652D

G657A1

G657A2

G657B3

G.655

62.5/125

50/125


Attenuation
(+20℃)


@850nm






≤3.5dB/km

@1300nm






≤1.5dB/km

@1310nm

≤0.45dB/km

≤0.40dB/km

≤0.45dB/km

≤0.50dB/km



@1550nm

≤0.30dB/km

≤0.50dB/km




Bandwidth
(Class A)


@850






≥200MHZ·km

≥500MHZ·km

@1300






≥500MHZ·km

≥500MHZ·km

Numerical Aperture







0.275±0.015NA

0.200±0.015NA

Cut-off Wavelength


≤1260nm


≤1480nm
