Hybrid Cable Assemblies LC SC FC ST MPO MTP E2000 SM MM

Hybrid cable assemblies typically include two or more power cables along with fiber optic or copper cables covered by one overall jacket.Such structure provides robust interconnecting power and fiber optic links between main and remote units for outdoor and indoor radio base stations.

Payment:
T/T,LC,WU,etc.
Product origin:
CN
Color:
Black or custom
Shipping port:
Shenzhen/HongKong
Lead Time:
3-15days

Product Details

Hybrid Cable Assemblies LC SC FC ST MPO MTP E2000 SM MM

SZOPT’s hybrid cable assemblies are designed to deliver rugged, reliable, and user-friendly connectivity solution,more fiber connectors such as SC,LC,FC,ST,MPO,MTP,MTRJ,E2000,etc.for options,any further enquiry,please feel free to reach us.

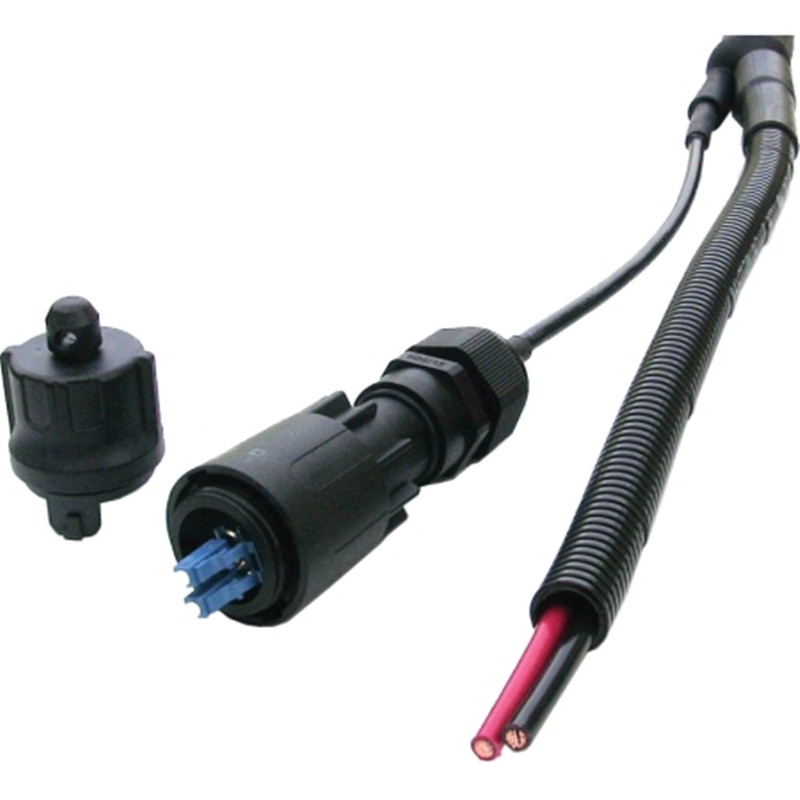

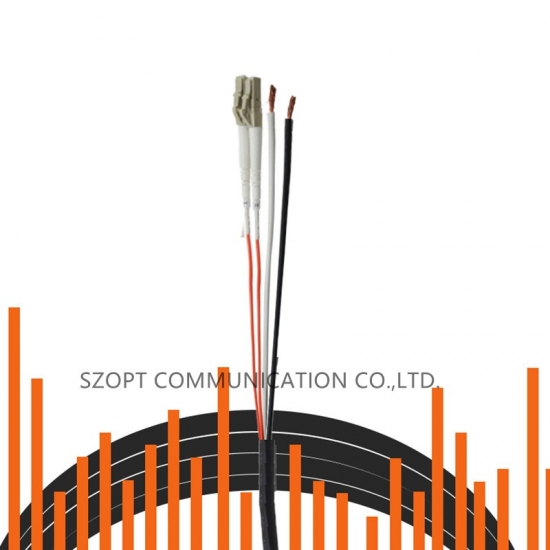

Hybrid Cable Assembly 2core

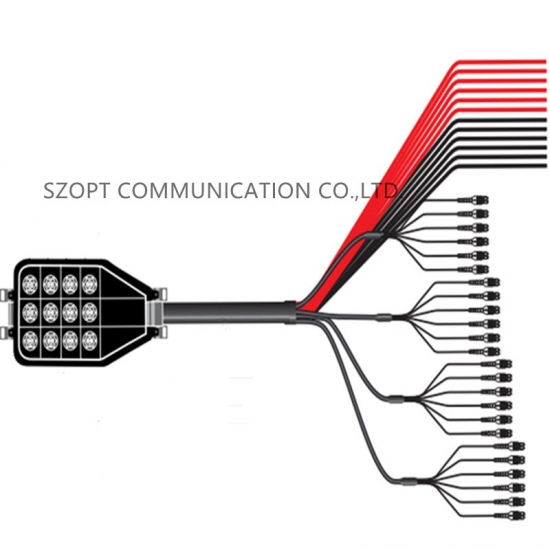

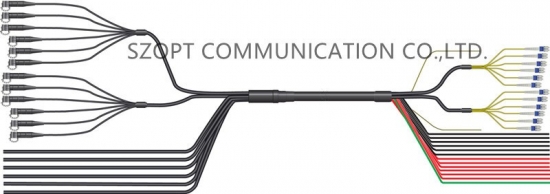

Hybrid Cable Assembly 6core

Hybrid Cable Assembly Sample 1

Workshop of Fiber Cords

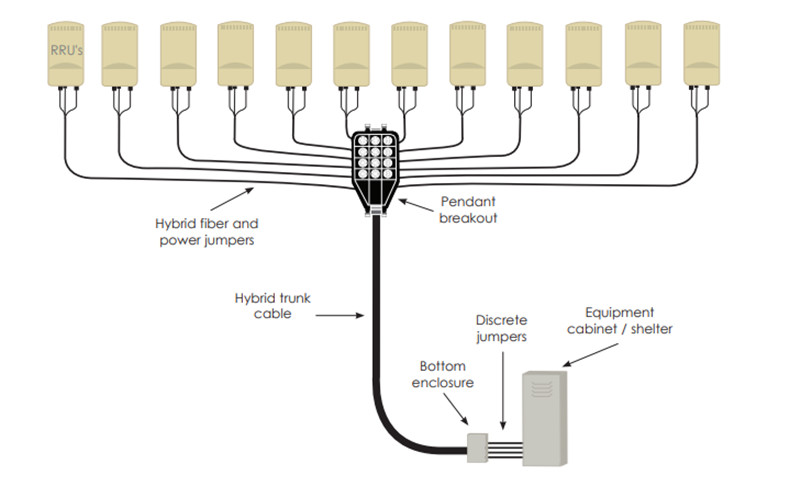

Hybrid Cable Appliance

Goods Ready to Ship

Application:

Telecommunication System

Testing Equipment

CATV System

LAN System

Feature:

Simplex,duplex or multi-core fiber optic connectors

Water blocking glass yarns

Insulated stranded copper (8AWG,12 AWG,16 AWG,etc.)

Flame retardent outer jacket

Package:

Each piece in a small PE bag,then some pcs in a bigger bag,finally put into a carton box.

Specification:

Connector Type			Performance Data
Connector		Polishing Mode	IL(dB)	RL(dB)
SC/LC/FC/ST/MU/E2000	SM	UPC	≤0.3	≥50
	SM	APC	≤0.3	≥60
	MM	PC	≤0.3	≥35
MTRJ/MPO/MTP	SM	PC	≤0.5	≥50
MTRJ/MPO/MTP	MM	PC	≤0.5	≥35
