Ribbon Optical Pigtail SC FC LC ST MU E2000 Multicore Singlemode Multimode

The ribbon Optical Pigtail SC/FC/LC/ST/MU/E2000 12C 24C 48C 96C 144C usually has 12 or 24 connectors on one end,with PVC,LSZH,OFNP jacket in yellow(SM);orange(OM1/OM2),aqua(OM3), magenta(OM4),lime green(OM5) or custom,the cable diameter can be custom,etc.

Payment:
T/T,LC,WU,etc.
Product origin:
CN
Color:
Yellow,orange or custom
Shipping port:
Shenzhen/HongKong
Lead Time:
3-15days

Product Details

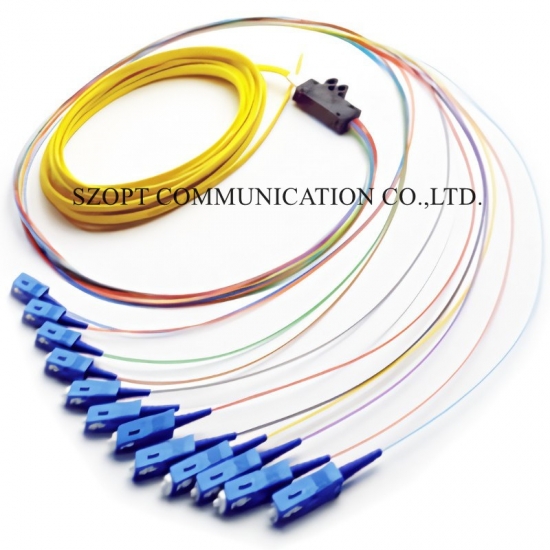

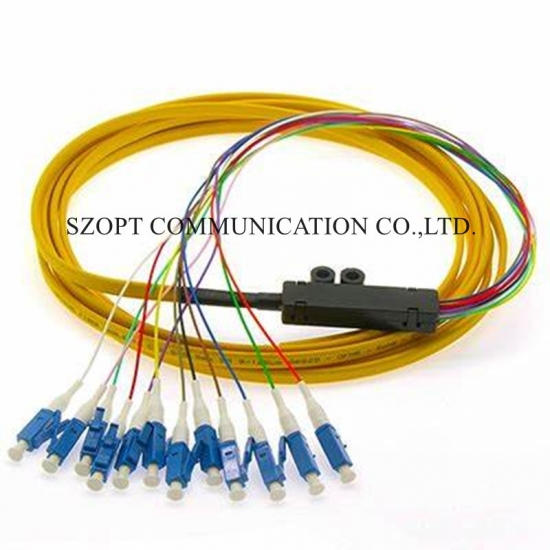

Ribbon Optical Pigtail SC FC LC ST MU E2000 Multicore Singlemode Multimode

Ribbon optical pigtail SC/LC/FC/ST/MU/E2000 SM/OM1/OM2/OM3/OM4/OM5 Multicore has 12 or 24 optical fiber connectors(singlemode or multimode) on one end. General use of these yellow,orange,aqua,magenta,lime green or custom color cable,if you have special requirement for the cable diameter,please reach us for details.

zirconia ferrule sc fc st lc

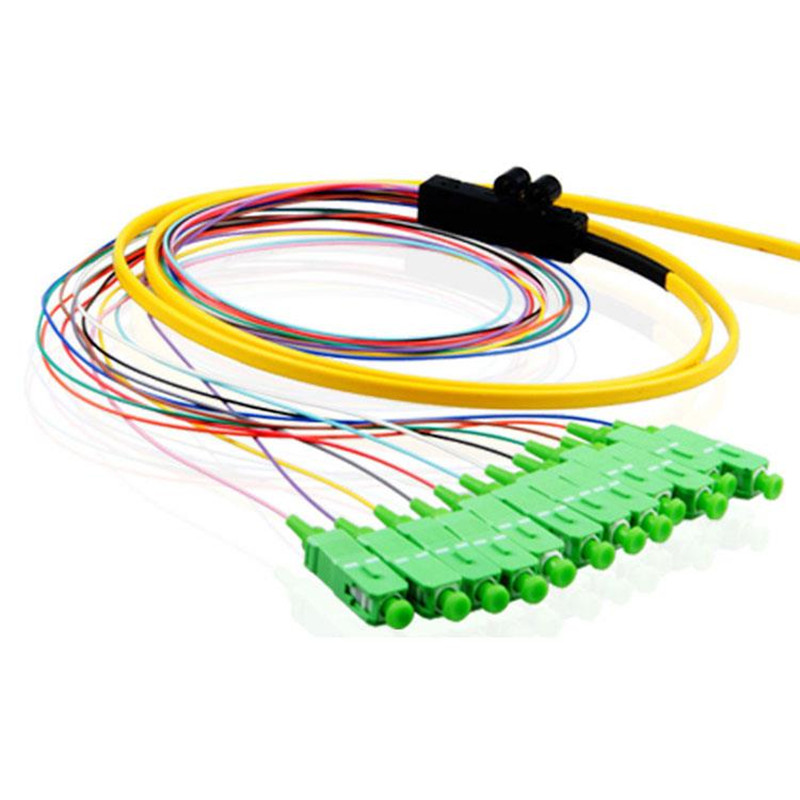

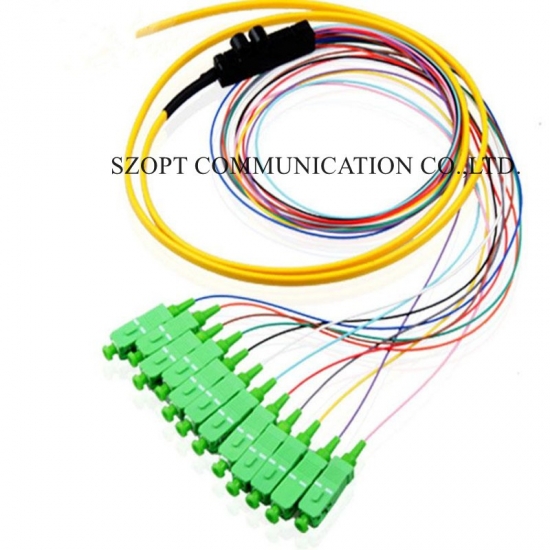

Ribbon pigtail sc/apc 12core

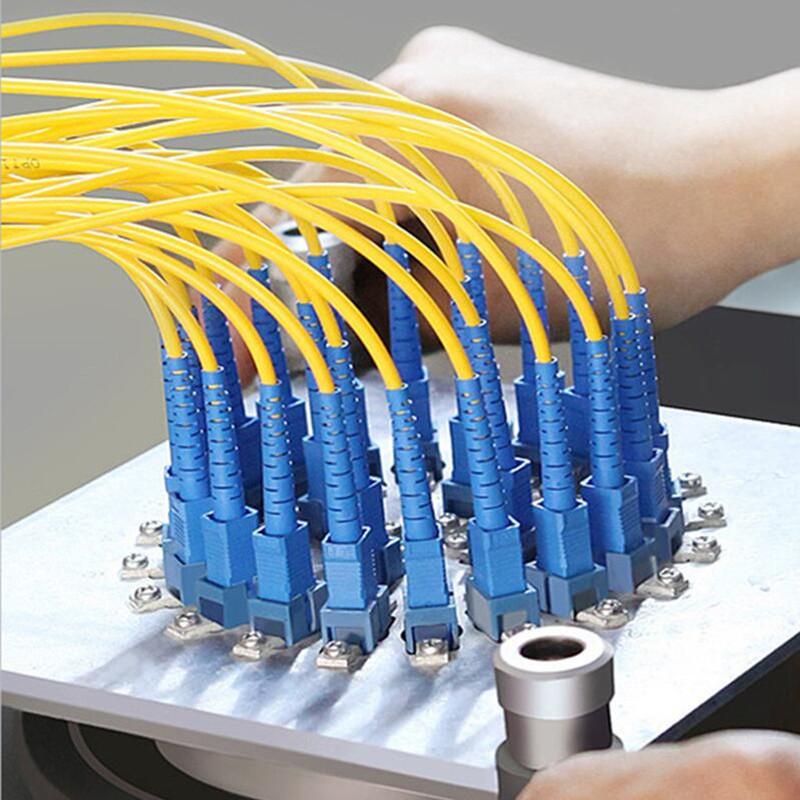

Fiber Patch Cords Polishing

Test of fiber patch cords

fiber patch cords workshop

Fiber Patch Cord Appliance

Goods Ready to Ship

Application:

Telecommunication System

Testing Equipment

CATV System

LAN System

Feature:

Low Insertion Loss

High Return Loss

High Reliability and Stability

0.9mm,2.0mm,3.0mm or custom diameter cable available

Package:

Each piece in a small PE bag,then some pcs in a bigger bag,finally put into a carton box.

Specification:

Connector Type			Performance Data
Connector		Polishing Mode	IL(dB)	RL(dB)
SC/LC/FC/ST/MU/E2000	SM	UPC	≤0.3	≥50
	SM	APC	≤0.3	≥60
	MM	PC	≤0.3	≥35
MTRJ	SM	PC	≤0.5	≥50
MTRJ	MM	PC	≤0.5	≥35
