Mode Conditioning Fiber Optic Patch Cords SC LC FC ST Simplex Duplex

Mode conditioning patch cords are required when Gigabit 1000BASE-LX routers and switches are installed into existing multimode cable plants. They are used to adapt the singlemode output of Gigabit Ethernet (1000BASE-LX) transceivers to a multimode cable network. All SZOPT’s mode-conditioning patch cords are fully compliant with IEEE 802.3z application standards.

Payment:
T/T,LC,WU,etc.
Product origin:
CN
Color:
Yellow,orange or custom
Shipping port:
Shenzhen/HongKong
Lead Time:
3-15days

Product Details

Mode Conditioning Fiber Optic Patch Cords SC LC FC ST Simplex Duplex

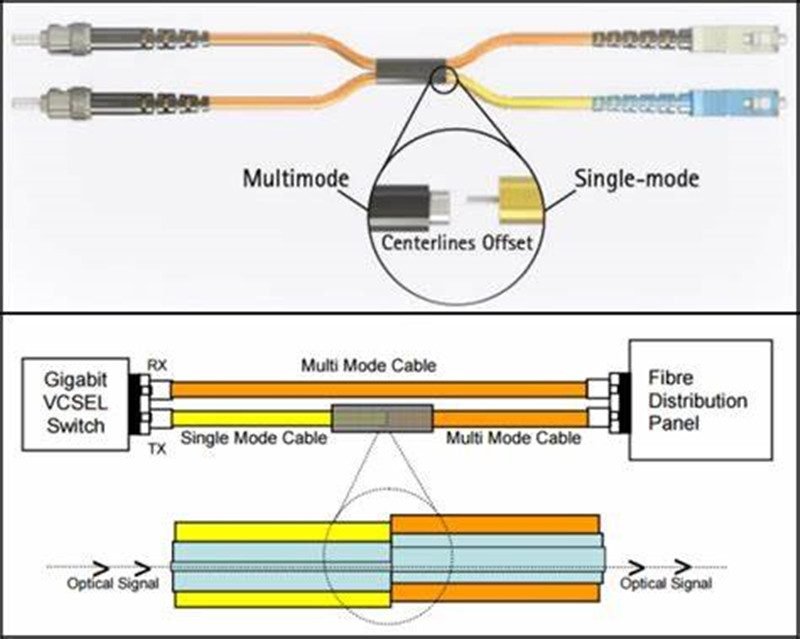

The conditioned channel of mode conditioning patch cords consists of a single-mode fiber which has been fusion spliced to a multimode fiber in an offset manner, with a precise core alignment and angle. The non-conditioned channel of mode conditioning patch cords consists of one length of multimode cable. Light is launched on to the multimode fiber of the conditioned channel at a specific angle, giving the patch cord its mode conditioning properties. The fusion splice is protected by a black over-wrap. The other side has both a multimode and single-mode cable end. This side of the cable connects to the Gigabit transceiver equipment with the single-mode leg connecting to the transmit side. The side has two multimode cable ends connecting to the cable plant.

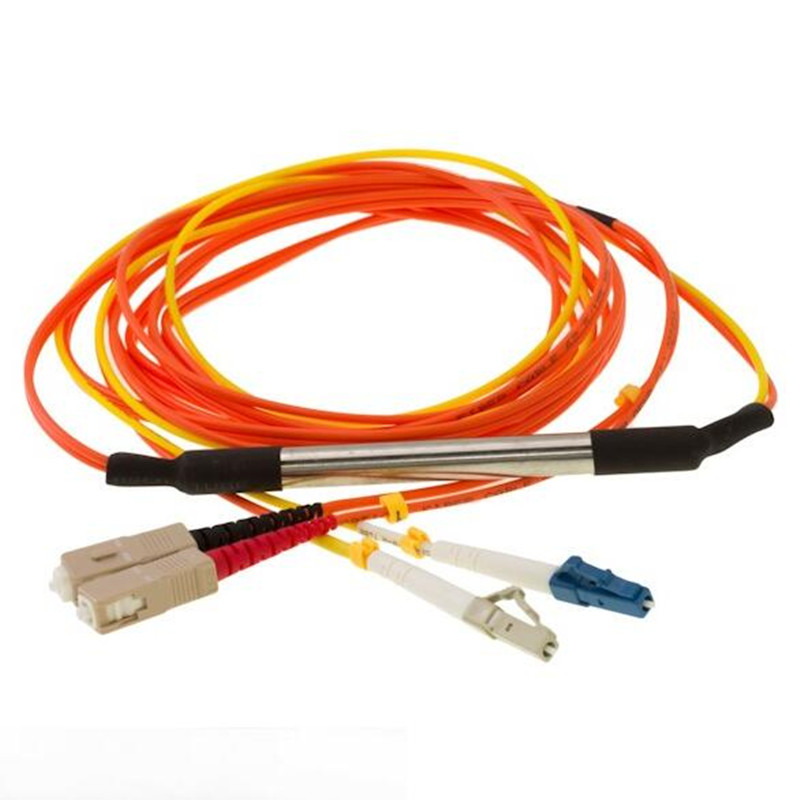

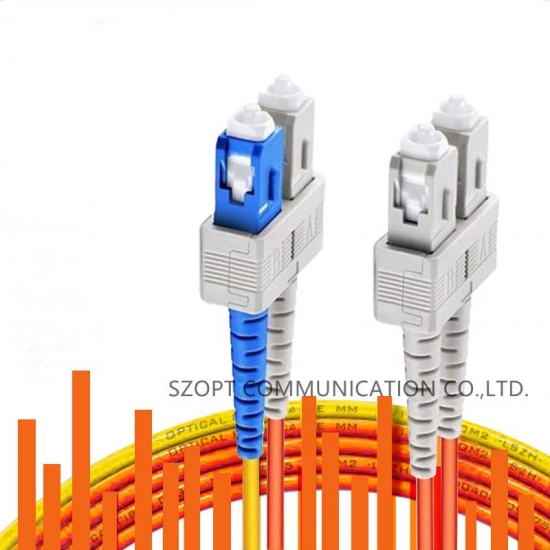

mode conditioning patch cable sc lc

mode conditioning inside structure

Polishing Station

Test of Fiber Patch Cords

Fiber Patch Cords Workshop

Fiber Patch Cords Appliance

Goods Ready to Ship

Application:

Telecommunication System

Testing Equipment

CATV System

LAN System

Feature:

Low Insertion Loss

High Return Loss

High Reliability and Stability

0.9mm,2.0mm,3.0mm or custom diameter cable available

Package:

Each piece in a small PE bag,then some pcs in a bigger bag,finally put into a carton box.

Specification:

Connector Type			Performance Data
Connector		Polishing Mode	IL(dB)	RL(dB)
SC/LC/FC/ST/MU/E2000	SM	UPC	≤0.3	≥50
	SM	APC	≤0.3	≥60
	MM	PC	≤0.3	≥35
MTRJ	SM	PC	≤0.5	≥50
MTRJ	MM	PC	≤0.5	≥35
