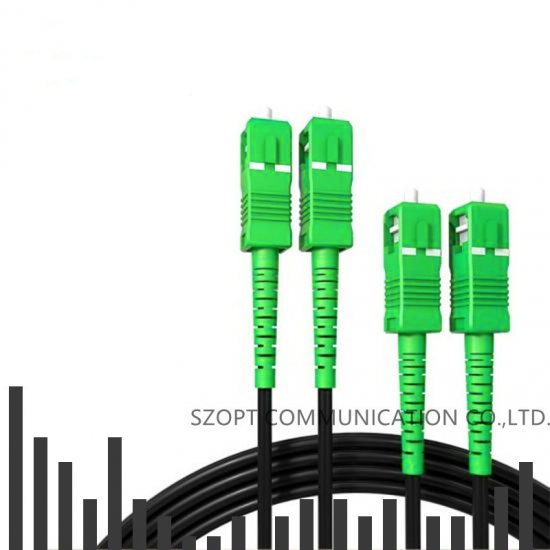

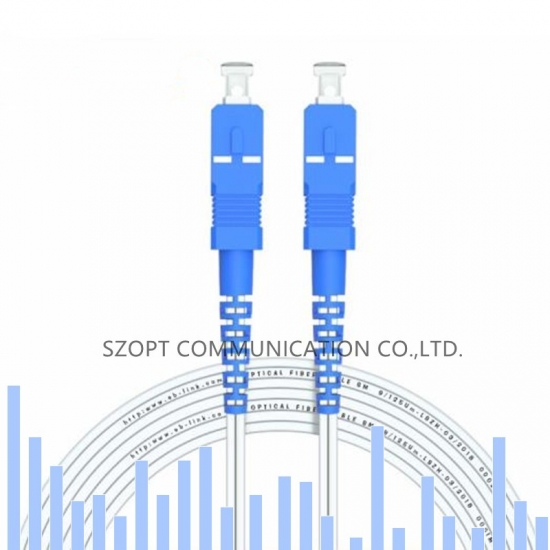

Indoor Outdoor FTTH Drop Cable Patch Cord SC-SC UPC APC 1C 2C 4C

FTTH Drop Cable Fiber Optic Patch Cord SC-SC has SC/UPC SC/APC connectors on both ends,with PVC or LSZH jacket in black(for indoor/outdoor) or white(for indoor only),the cable diameter is 2.0x3.0mm,2.0x3.5mm,2.0x5.0mm,etc.

Payment:
T/T,LC,WU,etc.
Product origin:
CN
Color:
Black or white.
Shipping port:
Shenzhen/HongKong
Lead Time:
3-15days

Product Details

Indoor Outdoor FTTH Drop Cable Patch Cord SC-SC UPC APC 1C 2C 4C

Fiber patchcord FC-FC SM/OM1/OM2/OM3/OM4/OM5 Duplex is a patch cord that has fiber connectors FC/UPC on both ends. General use of these yellow,orange,aqua,magenta,lime green or custom color cable assemblies includes the interconnection of fiber cable systems and optics-to-electronic equipment.

Zirconia Ferrule

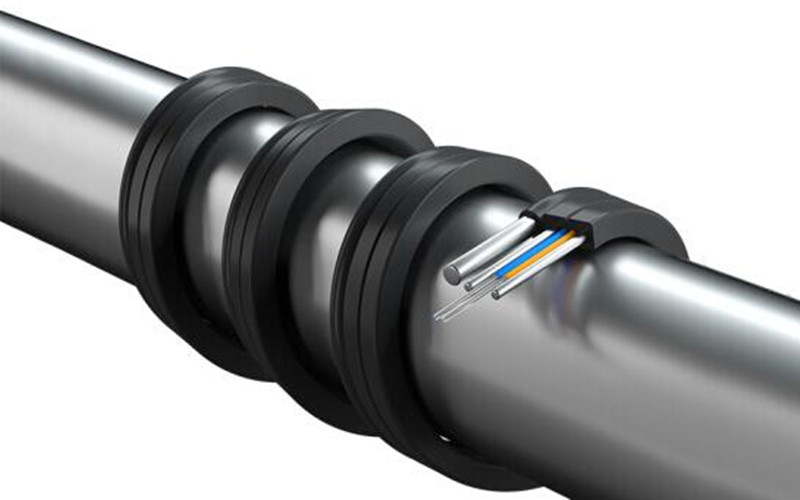

soft and flexible for ftth drop cable G657

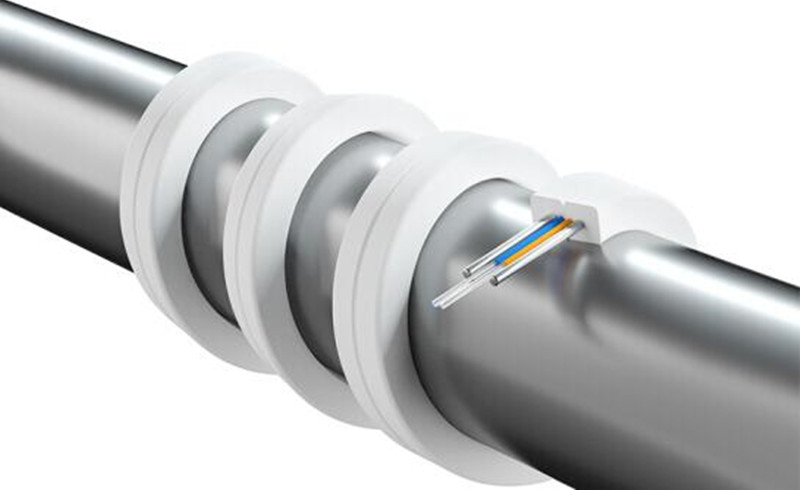

soft and flexible of ftth drop cable G657

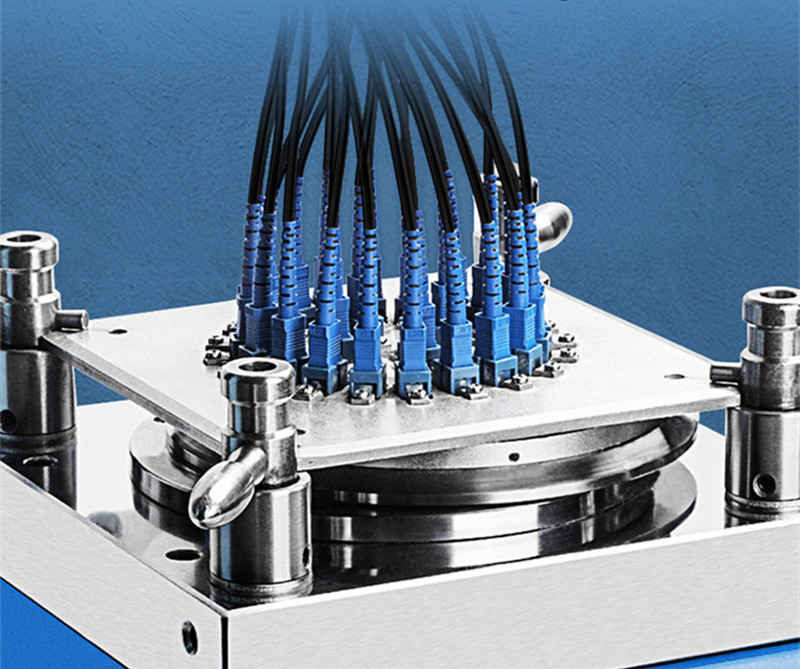

Test of Fiber Patch Cords

Workshop of Fiber Patch Cords

Fiber Patch Cord Appliance

Goods Ready to Ship

Application:

Telecommunication System

Testing Equipment

CATV System

LAN System

Feature:

Low Insertion Loss

High Return Loss

High Reliability and Stability

0.9mm,2.0mm,3.0mm or custom diameter cable available

Package:

Each piece in a small PE bag,then some pcs in a bigger bag,finally put into a carton box.

Specification:

Connector Type			Performance Data
Connector		Polishing Mode	IL(dB)	RL(dB)
SC/LC/FC/ST/MU/E2000	SM	UPC	≤0.3	≥50
	SM	APC	≤0.3	≥60
	MM	PC	≤0.3	≥35
MTRJ	SM	PC	≤0.5	≥50
MTRJ	MM	PC	≤0.5	≥35

Hot Tags :

ftth drop cable patch cord sc-sc upc ftth drop cable patch cord sc-sc apc self-supporting drop cable patch cord butterfly drop cable patch cord
