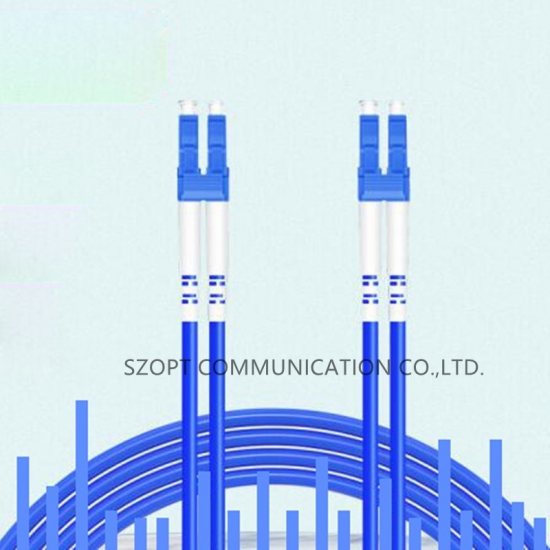

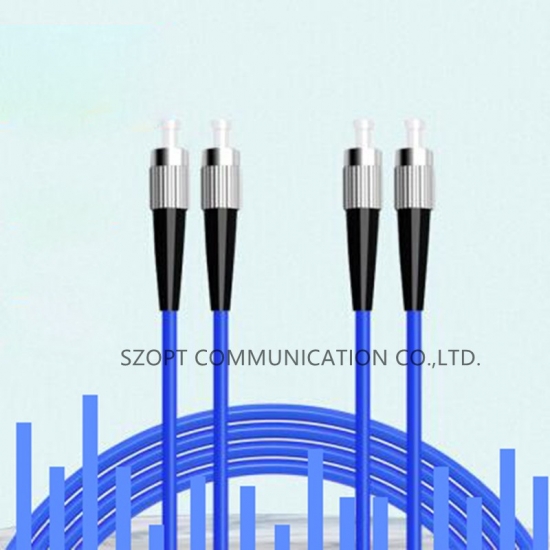

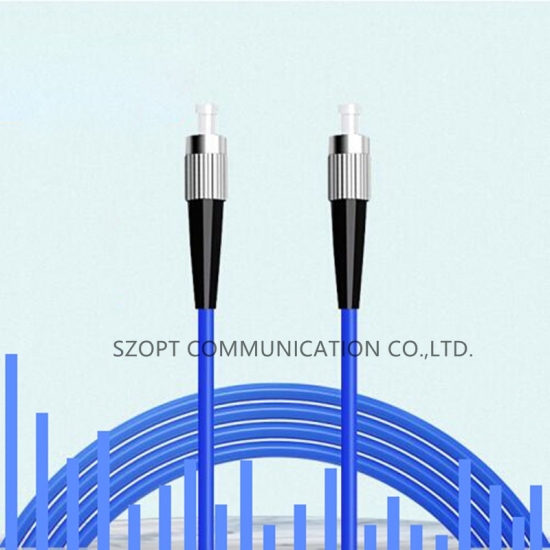

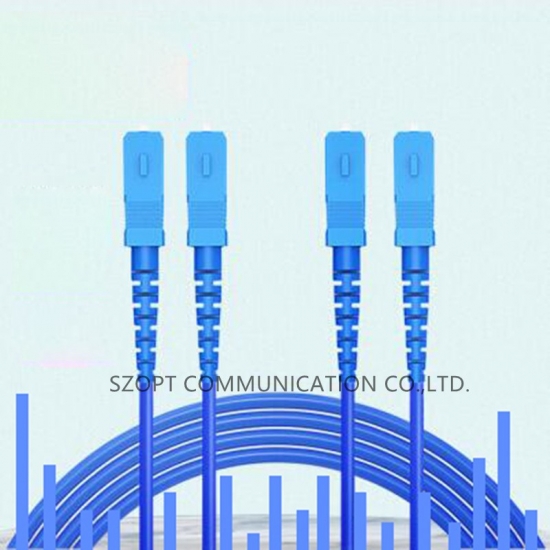

Armoured Fiber Patch Cords SC FC LC ST MU E2000 Simplex Duplex Singlemode Multimode

Armored Fiber Optical Patch Cords SC/FC/LC/ST have strong tensile force by stainless steel tube inside the cable in blue/beige/yellow or custom with PVC,LSZH,OFNP outer jacket.

Payment:
T/T,LC,WU,etc.
Product origin:
CN
Color:
Blue,beige or custom
Shipping port:
Shenzhen/HongKong
Lead Time:
3-15days

Product Details

Armoured Fiber Patch Cords SC FC LC ST MU E2000 Simplex Duplex Singlemode Multimode

Fiber patchcord Armoured SC/LC/FC/ST SM/OM1/OM2/OM3/OM4/OM5 is a kind of patch cord that has strong cable structure that trampling resistant,rodent resistant,etc. General use of these yellow,blue,beige or custom color cable jacket color,but still flexible and remains the stable transmission.

Zirconia ferrule for different connectors

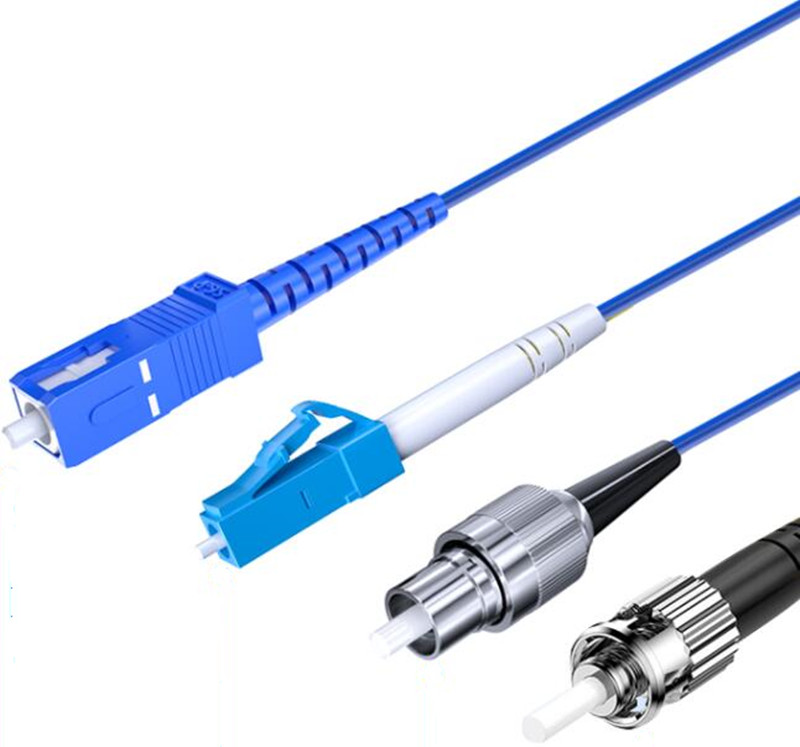

Different connectors available

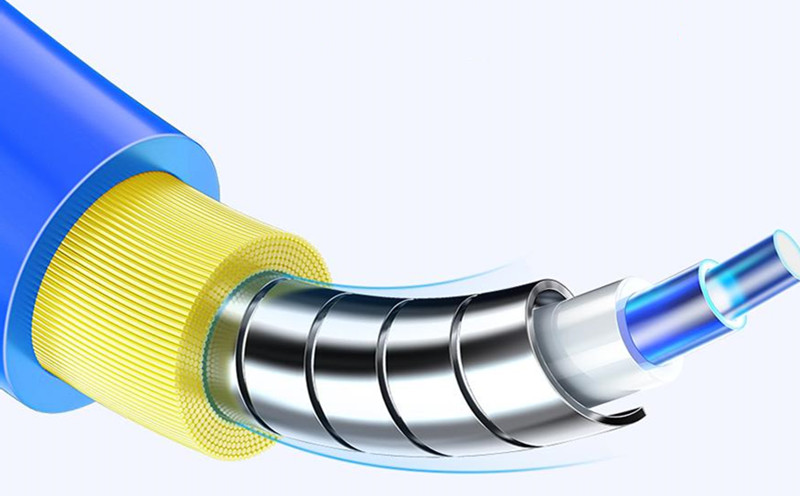

Armoured cable structure

Rigidity of the armoured cable

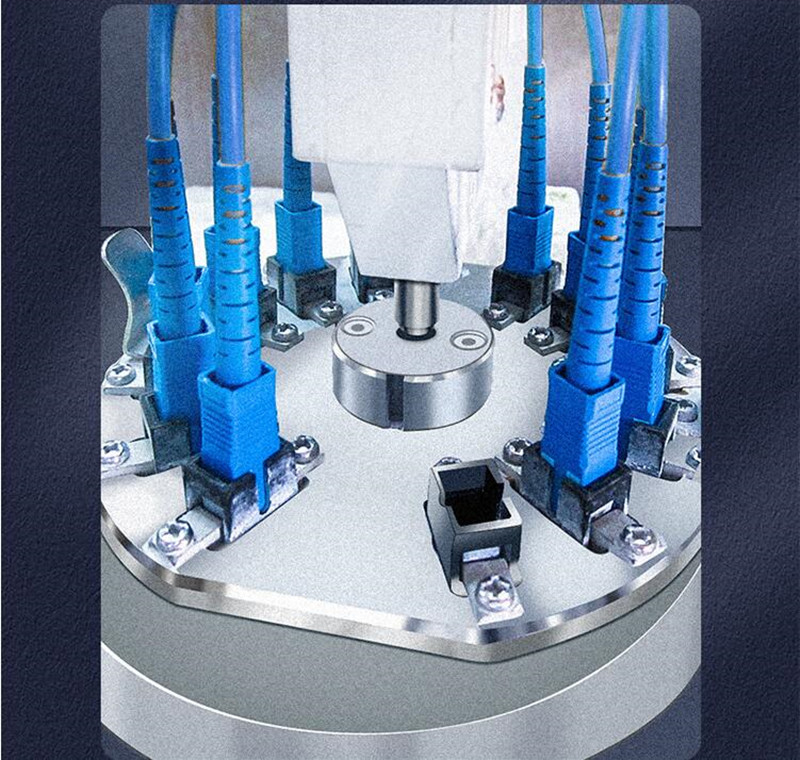

Connectors polishing

Test of patch cords

Patch cords workshop

Fiber patchcords appliance

Goods ready to ship

Application:

Telecommunication System

Testing Equipment

CATV System

LAN System

Feature:

Low Insertion Loss

High Return Loss

High Reliability and Stability

0.9mm,2.0mm,3.0mm or custom diameter cable available

Package:

Each piece in a small PE bag,then some pcs in a bigger bag,finally put into a carton box.

Specification:

Connector Type			Performance Data
Connector		Polishing Mode	IL(dB)	RL(dB)
SC/LC/FC/ST/MU/E2000	SM	UPC	≤0.3	≥50
	SM	APC	≤0.3	≥60
	MM	PC	≤0.3	≥35
MTRJ	SM	PC	≤0.5	≥50
MTRJ	MM	PC	≤0.5	≥35
