Fiber Patch Cords FC-ST Simplex Duplex Singlemode MM OM3 OM4 OM5

Fiber Optical Patch Cord FC-ST has FC & ST connectors,with PVC,LSZH,OFNP jacket in yellow(SM);orange(OM1/OM2),aqua(OM3), magenta(OM4),lime green(OM5) or custom,the cable diameter is 3.0mm,2.8mm,2.4mm,2.0mm,1.8mm,1.6mm,1.2mm,0.9mm,etc.

Payment:
T/T,LC,WU,etc.
Product origin:
CN
Color:
Yellow,orange,aqua,magenta or custom
Shipping port:
Shenzhen/HongKong
Lead Time:
3-15days

Product Details

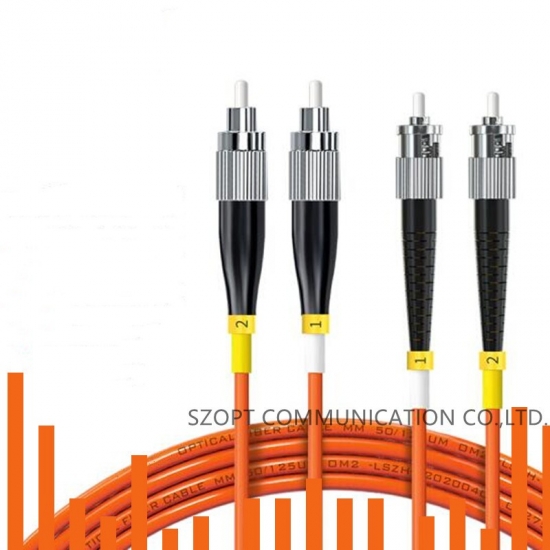

Fiber Patch Cords FC-ST Simplex Duplex Singlemode MM OM3 OM4 OM5

Fiber patchcord SC-LC SM/OM1/OM2/OM3/OM4/OM5 is a patch cord that has fiber connectors SC & LC. General use of these yellow,orange,aqua,magenta,lime green or custom color cable assemblies includes the interconnection of fiber cable systems and optics-to-electronic equipment.

Zirconia Ferrules

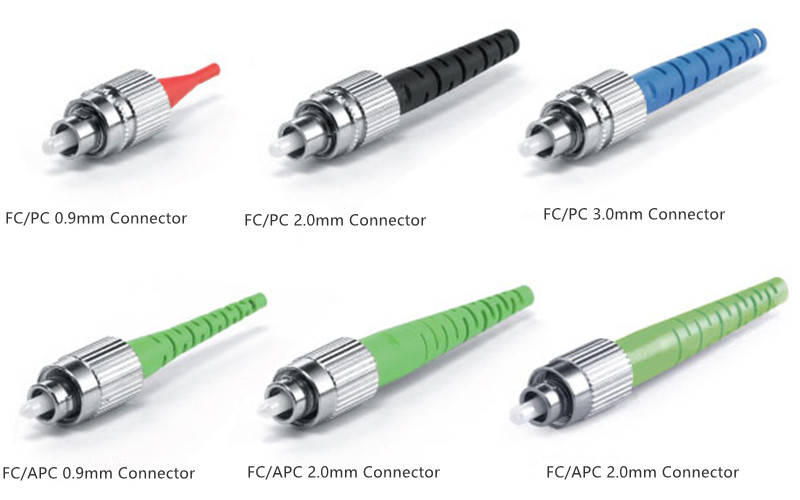

FC connectors for options

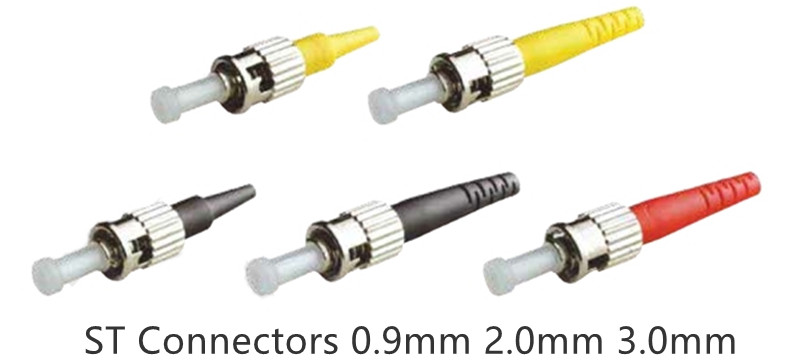

ST Connectors for options

Polishing Station

Test of Fiber Patch Cords

Workshop of Fiber Cords

Fiber Patch Cords Appliance

Goods Ready to Ship

Application:

Telecommunication System

Testing Equipment

CATV System

LAN System

Feature:

Low Insertion Loss

High Return Loss

High Reliability and Stability

0.9mm,2.0mm,3.0mm or custom diameter cable available

Package:

Each piece in a small PE bag,then some pcs in a bigger bag,finally put into a carton box.

Specification:

Connector Type			Performance Data
Connector		Polishing Mode	IL(dB)	RL(dB)
SC/LC/FC/ST/MU/E2000	SM	UPC	≤0.3	≥50
	SM	APC	≤0.3	≥60
	MM	PC	≤0.3	≥35
MTRJ	SM	PC	≤0.5	≥50
MTRJ	MM	PC	≤0.5	≥35
