High Quality and Cost-Effective Single Mode Bend Insensitive Multimode Patch Cords SC-SC

The 9/125 single mode bend insensitive fiber or our multimode patch cords are less attenuation when bent or twisted compared with traditional patch cords and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, etc.

Payment:
T/T,LC,WU,etc.
Product origin:
CN
Color:
Yellow,orange or custom
Shipping port:
Shenzhen/HongKong
Lead Time:
3-15days

Product Details

High Quality and Cost-Effective Single Mode Bend Insensitive Multimode Patch Cords SC-SC

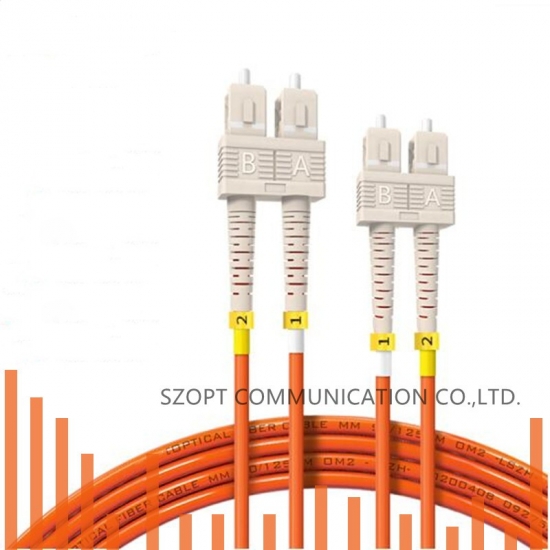

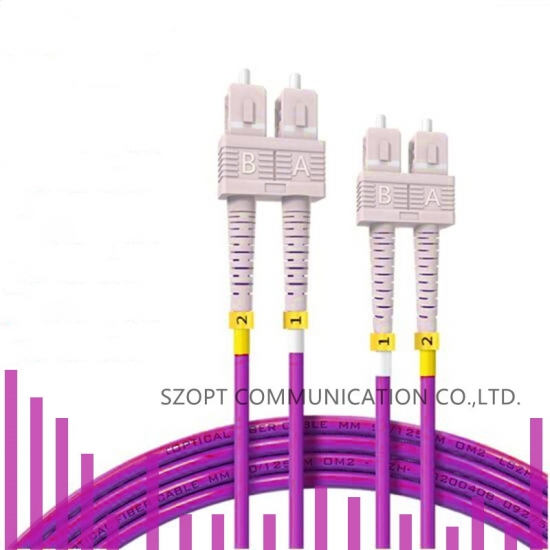

Fiber Optical Patch Cord SC-SC has SC/UPC connectors on both ends,with PVC,LSZH,OFNP jacket in yellow(SM);orange(OM1/OM2),aqua(OM3), magenta(OM4),lime green(OM5) or custom,the cable diameter is 3.0mm,2.8mm,2.4mm,2.0mm,1.8mm,1.6mm,1.2mm,0.9mm,etc.

Fiber Optical Patch Cord SC-SC

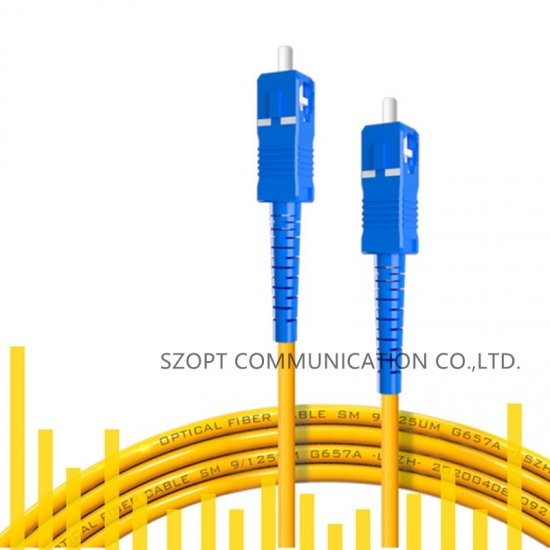

Fiber Connectors SC UPC

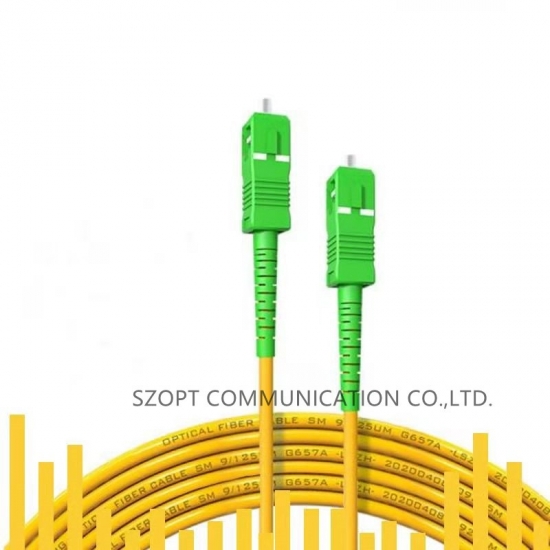

Fiber Connectors SC APC

Polishing Station

Test of Fiber Patch Cords

Workshop of Fiber Cords

Fiber Patch Cords Appliance

Goods Ready to Ship

Application:

Telecommunication System

Testing Equipment

CATV System

LAN System

Feature:

Low Insertion Loss

High Return Loss

High Reliability and Stability

0.9mm,2.0mm,3.0mm or custom diameter cable available

Package:

Each piece in a small PE bag,then some pcs in a bigger bag,finally put into a carton box.

Specification:

Connector Type			Performance Data
Connector		Polishing Mode	IL(dB)	RL(dB)
SC/LC/FC/ST/MU/E2000	SM	UPC	≤0.3	≥50
	SM	APC	≤0.3	≥60
	MM	PC	≤0.3	≥35
MTRJ	SM	PC	≤0.5	≥50
MTRJ	MM	PC	≤0.5	≥35
