PM Fiber Patch Cords SC LC FC ST 780/850/980/1064/1310/1550nm

Polarization maintaining (PM) patch cord / jumper leads are built with polarization maintaining panda fiber and connectorise using FC/UPC, FC/APC, SC and LC connectors,etc. Such PM Patchcords can be supplied in 250um bare fiber, 900um buffered fiber or 3mm OD cable.

Payment:
T/T,LC,WU,etc.
Product origin:
CN
Color:
Yellow,orange,aqua,magenta or custom
Shipping port:
Shenzhen/HongKong
Lead Time:
3-15days

Product Details

PM Fiber Patch Cords SC LC FC ST 780/850/980/1064/1310/1550nm

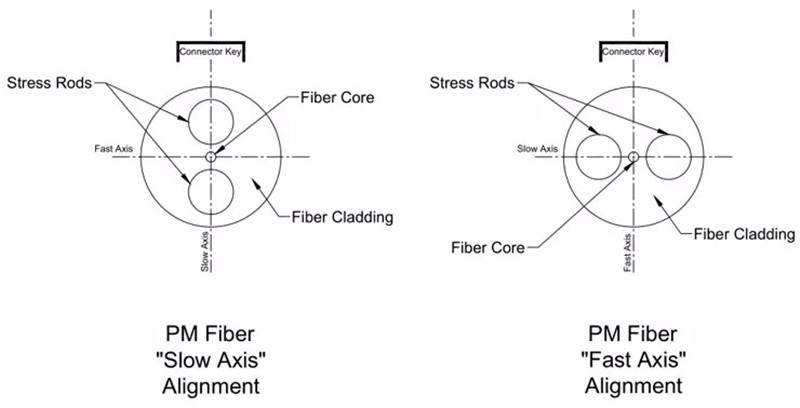

SZOPT's PM fiber patch cords are able to precisely aligned to either the mechanical plane (with respect to the stress rods), or to the optical plane (active alignment with respect to the launched optical signal). All assemblies are tested for Insertion Loss, Return Loss and Extinction Ratio to ensure the highest quality assemblies are supplied.For more information,please contact us immediately.

Zirconia Ferrules

Fiber Alignment

Polishing Station

Test of Fiber Patch Cords

Workshop of Fiber Cords

Application:

Optical Fiber Amplifiers;

Test Instrument;
Fiber Sensor;
Fiber Laser.

Feature:

Low Insertion Loss;

High Return Loss;
High Extinction Ratio;

High Reliability;

Package:

Each piece in a small PE bag,then some pcs in a bigger bag,finally put into a carton box.

Specification:

Parameter		Unit	Value
Connector Type			FC/UPC, SC/UPC,LC/UPC,MU/UPC, FC/APC, SC/APC,LC/APC
Wavelength		nm	1310, 1550	980, 1060	850	780
Insertion Loss		dB	≤0.3	≤0.5	≤0.8	≤0.8
Return Loss	UPC	dB	≥50
	APC	dB	≥60
Extinction Ratio at 23℃		dB	≥23	≥23	≥22	≥22
Fiber Type			PM1310,PM1550	PM980	PM850	PM780
Key Orientation			Slow Axis
Axis Alignment		deg	±3
Operating temperature		℃	-20~+70
Storage temperature		℃	-40~+80
